BADA-025-CITV-D0-ABS51-C001-22-C002-31-LV-1

Price.

3.124,30 lei

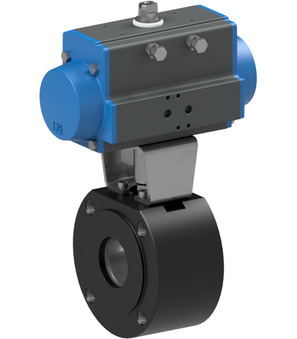

Flanged ball valve with pneumatic actuator Series BADA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BADA
  6. BADA-025-CITV-D0-ABS51-C001-22-C002-31-LV-1
BADA-025-CITV-D0-ABS51-C001-22-C002-31-LV-1
BADA-025-CITV-D0-ABS51-C001-22-C002-31-6
BADA-025-CITV-D0-ABS51-C001-22-C002-31-6
3.097,20 lei
3.097,20 lei
BADA-025-CITV-D0-ABS51-C001-22-C002-31-LVCV20-1
BADA-025-CITV-D0-ABS51-C001-22-C002-31-LVCV20-1
3.170,70 lei
3.170,70 lei

BADA-025-CITV-D0-ABS51-C001-22-C002-31-LV-1

BADA-025-CITV-D0
Flanged ball valve with pneumatic actuator Series BADA; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 46mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.47 Kg
Short Itemnumber:BADA025CITVD0ABS51C00122C00231LV1
https://www.stasto.ro/web/image/product.template/198386/image_1920?unique=d9024cc

BADA-025-CITV-D0
flanged ball valve with pneumatic actuator series BADA; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; length 46mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-LV-1
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

3.124,30 lei 3124.3 RON 3.124,30 lei

Not Available For Sale

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
DN 25 mm
Length 46 mm
Designs
Connector size 22
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 230V/50-60Hz
pressure
Pressure range 0...16 bar
characteristics
Coil C001
Actuator PAD052
