BAC4-006-SSTV-S0-ABS53-C001-03-C002-31-LV-2-EB0X02

Price.

4.089,20 lei

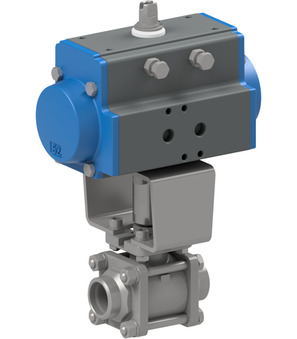

Ball valve with pneumatic actuator Series BAC4 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAC4
  6. BAC4-006-SSTV-S0-ABS53-C001-03-C002-31-LV-2-EB0X02
BAC4-006-SSTV-S0-ABS53-C001-03-C002-31-LV-2-EB0X02
BAC4-006-SSTV-S0-ABS53-C001-03-C002-31-LV-2-EB0X01
BAC4-006-SSTV-S0-ABS53-C001-03-C002-31-LV-2-EB0X01
3.692,90 lei
3.692,90 lei
BAC4-006-SSTV-S0-ABS53-C001-03-C002-31-LVCV20-2
BAC4-006-SSTV-S0-ABS53-C001-03-C002-31-LVCV20-2
3.213,50 lei
3.213,50 lei

BAC4-006-SSTV-S0-ABS53-C001-03-C002-31-LV-2-EB0X02

BAC4-006-SSTV-S0
Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAS0635
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
EB0X02
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 100mA/24VDC; Switch type Crouzet 831618; Contact material Alloy of gold; Material of case Plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.478 Kg
Short Itemnumber:BAC4006SSTVS0ABS53C00103C00231LV2EB0X02
https://www.stasto.ro/web/image/product.template/241308/image_1920?unique=94b97ec

BAC4-006-SSTV-S0
ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAS0635
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

4.089,20 lei 4089.2 RON 4.089,20 lei

Not Available For Sale

  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Butt weld ends 25 mm
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Valve interface Namur 1/4"
DN 25 mm
Length 92 mm
Designs
Connector size 22
Switch type Crouzet 831618
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
Switching capacity 100mA/24VDC
pressure
Pressure range 0...40 bar
materials
Contact material Alloy of gold
Material of case Plastic
characteristics
Coil C001
Actuator PAS0635
