BAC4-005-SSTV-D0-ABS51-C001-03-C002-31-LVCV20-2
BAC4-005-SSTV-D0

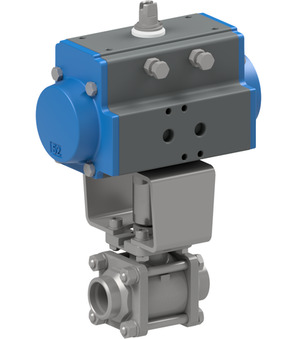

Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 24VAC/DC
Country of origin: Italy
Weight: 2.65 Kg
Short Itemnumber: BAC4005SSTVD0ABS51C00103C00231LVCV202
BAC4-005-SSTV-D0
ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
connector; connector size 22mm; with integrated LED-yellow, VDR and PVC-cable (2 m); voltage 24VAC/DC
