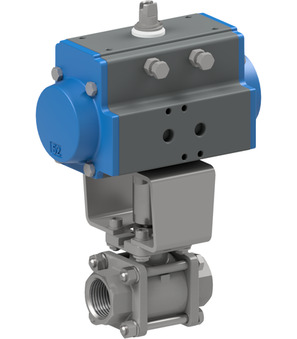

Ball valve with pneumatic actuator BAC1-009-SSTV-T0

Ball valve with pneumatic actuator BAC1-009-SSTV-T0

ball valve with pneumatic actuator series BAC1; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAS1005; NO variant

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 11.46 Kg
Short Itemnumber: BAC1009SSTVT0
https://www.stasto.ro/web/image/product.template/222644/image_1920?unique=87fb56f

ball valve with pneumatic actuator series BAC1; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAS1005; NO variant

4.474,20 lei 4474.2 RON 4.474,20 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
Female thread RP 2"
DN 50 mm
Length 136 mm
All specifications (5)
Pressure range 0...25 bar
Female thread RP 2"
DN 50 mm
Length 136 mm
Brand STASTO
Ball valve made of stainless steel 710000-2"
710000-2" x 1.0 Pcs
Ball valve made of stainless steel 710000-2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
