BAC1-006-CITV-T0

Name: BAC1-006-CITV-T0
Brand: STASTO
SKU: BAC1-006-CITV-T0
Price: 2347.0 RON
Availability: InStock

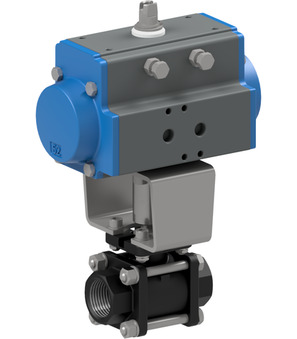

ball valve with pneumatic actuator series BAC1; NO; female thread; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 1"; nominal diameter 25mm; pressure range 0...40bar; length 92mm; actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.545 Kg
Short Itemnumber: BAC1006CITVT0

2.347,00 lei 2347.0 RON 2.347,00 lei

Female thread
- RP 1"
DN
- 25 mm
Length
- 92 mm
Pressure range
- 0...40 bar
Actuator
- PAS0635

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 1"
DN	25 mm
Length	92 mm
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS0635

713000-1" x 1.0

Ball valve made of steel 713000-1"

Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm

Add to Cart

PAS0635-B x 1.0

PAS0635-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3033 x 1.0
