BAB1-007-BLTV-D0B-ABS52-C001-22-C002-31-6-EB0X14

Price.

3.801,50 lei
Ball valve with pneumatic actuator Series BAB1 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAB1
  6. BAB1-007-BLTV-D0B-ABS52-C001-22-C002-31-6-EB0X14
BAB1-007-BLTV-D0B-ABS52-C001-22-C002-31-6-EB0X14
BAB1-007-BLTV-D0B-ABS51-C001-22-C002-31-6
BAB1-007-BLTV-D0B-ABS51-C001-22-C002-31-6
2.543,90 lei
2.543,90 lei
BAB1-007-BLTV-D0B-ABS51-C001-22-C002-31-LV-1
BAB1-007-BLTV-D0B-ABS51-C001-22-C002-31-LV-1
2.570,90 lei
2.570,90 lei

BAB1-007-BLTV-D0B-ABS52-C001-22-C002-31-6-EB0X14

BAB1-007-BLTV-D0B

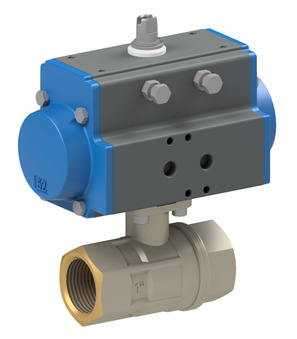

Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 102mm; Actuator PAD052
ABS52
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-Wege-NAMUR-Impulsmagnetventil (NM52W2S-TP); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X14
Mounted limit switch box; IP65; Inductive dual proximity switch, Suitable for Actuators PAD/PAS052-270; Switching capacity 8VDC/3mA; Switch type P&F NCN3-F25F-N4; Function NC contact-Namur - ATEX; Material of case Plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.011 Kg
Short Itemnumber:BAB1007BLTVD0BABS52C00122C002316EB0X14
https://www.stasto.ro/web/image/product.template/211429/image_1920?unique=94b97ec

BAB1-007-BLTV-D0B
ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0-40bar; length 102mm; actuator PAD052
ABS52
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-Wege-NAMUR-Impulsmagnetventil (NM52W2S-TP); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X14
mounted limit switch box; IP65; inductive dual proximity switch, suitable for actuators PAD/PAS052-270; switching capacity 8VDC/3mA; switch type P&F NCN3-F25F-N4; function NC contact-Namur - ATEX; material of case plastic

3.801,50 lei 3801.5 RON 3.801,50 lei

Not Available For Sale

  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Voltage type
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Valve interface Namur 1/4"
Female thread RP 1 1/4"
DN 32 mm
Length 102 mm
function
Function NC-Namur - ATEX
Designs
Connector size 22
Switch type P&F NCN3-F25F-N4
design
Design ATEX
Electrical key figures
Voltage 230V/50-60Hz
Switching capacity 8VDC/3mA
pressure
Pressure range 0...40 bar
materials
Material of case Plastic
characteristics
Coil C001
Actuator PAD052
