BAB1-007-BLTV-D0B-ABS51-C001-03-C002-31-6-EB0X01

BAB1-007-BLTV-D0B-ABS51-C001-03-C002-31-6-EB0X01

BAB1-007-BLTV-D0B

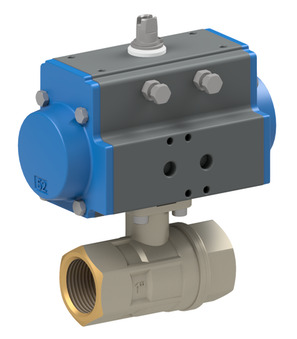

ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0-40bar; length 102mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.971 Kg
Short Itemnumber: BAB1007BLTVD0BABS51C00103C002316EB0X01
https://www.stasto.ro/web/image/product.template/233900/image_1920?unique=f002219

BAB1-007-BLTV-D0B
ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0-40bar; length 102mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

3.063,60 lei 3063.6 RON 3.063,60 lei

Not Available For Sale

excl. tax
  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Voltage type
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1 1/4"
DN 32 mm
Length 102 mm
All specifications (9)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 1 1/4"
DN 32 mm
Length 102 mm
Voltage 24VDC / 48V/50-60Hz
Design Standard
Switch type Crouzet 831613
Contact material Silver-nickel
Material of case Plastic

BAB1-007-BLTV-D0B-ABS51-C001-03-C002-31-6-EB0X01

Documents

16 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Danish / Dansk
ZIP

Data Sheets

5

CAD / 3D

5
German / Deutsch
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

5

CAD / 3D

5
Greek / Ελληνικά
ZIP

Data Sheets

5

CAD / 3D

5
English
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

5

CAD / 3D

5
Spanish / Español
ZIP

Data Sheets

5

CAD / 3D

5
Finnish / Suomi
ZIP

Data Sheets

5

CAD / 3D

5
French / Français
ZIP

Data Sheets

5

CAD / 3D

5
Croatian / hrvatski jezik
ZIP

Data Sheets

5

CAD / 3D

5
Hungarian / Magyar
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Italian / Italiano
ZIP

Data Sheets

5

CAD / 3D

5
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

5

CAD / 3D

5
Dutch / Nederlands
ZIP

Data Sheets

5

CAD / 3D

5
Polish / Język polski
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Romanian / română
ZIP

Data Sheets

5

CAD / 3D

5
Slovenian / slovenščina
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Serbian (Latin) / srpski
ZIP

Data Sheets

5

Declarations of Conformity

5

CAD / 3D

5
Swedish / Svenska
ZIP

Data Sheets

5

CAD / 3D

5
Ball valve with pneumatic actuator BAB1-007-BLTV-D0B
BAB1-007-BLTV-D0B x 1.0 Pcs
Ball valve with pneumatic actuator BAB1-007-BLTV-D0B
Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 102mm; Actuator PAD052
Mounted pilot valve ABS51
ABS51 x 1.0 Pcs
Mounted pilot valve ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
C002-31-6 x 1.0 Pcs
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
EB0X01 x 1.0 Pcs
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
