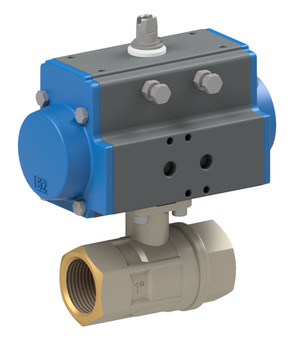

Ball valve with pneumatic actuator BAB1-002-BLTV-D0B-ABS51-C001-22-C002-31-LVCV20-1

Ball valve with pneumatic actuator BAB1-002-BLTV-D0B-ABS51-C001-22-C002-31-LVCV20-1

BAB1-002-BLTV-D0B
Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0-40bar; Length 67mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LVCV20-1
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 230VAC/DC

Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.983 Kg
Short Itemnumber: BAB1002BLTVD0BABS51C00122C00231LVCV201
https://www.stasto.ro/web/image/product.template/196021/image_1920?unique=0a10e54

BAB1-002-BLTV-D0B
ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0-40bar; length 67mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-LVCV20-1
connector; connector size 22mm; with integrated LED-yellow, VDR and PVC-cable (2 m); voltage 230VAC/DC

2.169,00 lei 2169.0 RON 2.169,00 lei

Not Available For Sale

excl. tax
  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Voltage type
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 1/4"
DN 8 mm
Length 67 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 1/4"
DN 8 mm
Length 67 mm
Voltage 230V/50-60Hz
Design With integrated LED-yellow, VDR and PVC-cable (2 m)

BAB1-002-BLTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
