BA893-20-S0

BA893-20-S0

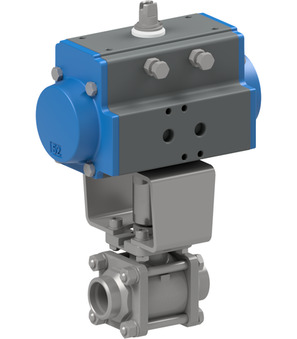

Ball valve with pneumatic actuator Series BA893-S; Butt weld ends; Three-parts type; Body, Ball 1.4408; Seals PTFE-Reinforced with carbographite/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.02 Kg
Short Itemnumber: BA89320S0
https://www.stasto.ro/web/image/product.template/232516/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA893-S; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-reinforced with carbographite/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS0635

2.460,80 lei 2460.8 RON 2.460,80 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA893-20-L
    BA893-20-L x 1.0
    BA893-20-L
    Ball valve made of stainless steel Series BA893-L; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4408; Seals PTFE-Reinforced with carbographite/EPDM; Medium temperature -30...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm
    Add to Cart
    Pneumatic actuator PAS0635
    PAS0635 x 1.0
    Pneumatic actuator PAS0635
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
