BA801-20-S0

Name: BA801-20-S0
Brand: STASTO
SKU: BA801-20-S0
Price: 999999.0 RON
Availability: InStock

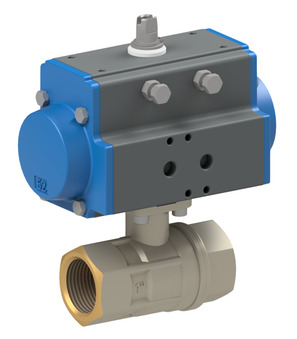

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-30bar; Length 120mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.03 Kg
Short Itemnumber: BA80120S0

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-30bar; length 120mm; actuator PAS0635

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA801-20-B x 1.0

Ball valve made of stainless steel BA801-20-B

Ball valve made of brass; Bare shaft; Full bore; Female thread; Seal PTFE/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...30bar; Length 120mm; Flange ISO5211 F05; Square 11mm

Add to Cart

PAS0635 x 1.0

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart
