BA799-10-D0-A

BA799-10-D0-A

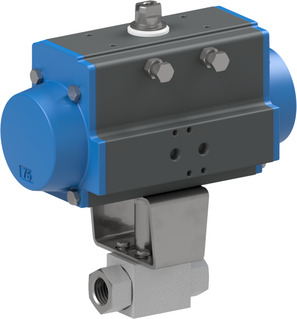

Ball valve with pneumatic actuator Series BA799; Female thread; Body Zinc plated steel; Ball Steel; Seals PEEK/ATEX; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; Application Isocyanate; Polyol; G 1"; Nominal diameter 25mm; Pressure range 0...350bar; Length 113mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA79910D0A
https://www.stasto.ro/web/image/product.template/180164/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA799; female thread; body zinc plated steel; ball steel; seals PEEK/ATEX; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; application isocyanate; Polyol; G 1"; nominal diameter 25mm; pressure range 0...350bar; length 113mm; actuator PAD085

6.737,10 lei 6737.1 RON 6.737,10 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1"
DN 25 mm
Length 113 mm
design
Design ATEX
pressure
Pressure range 0...350 bar
characteristics
Actuator PAD085
BA799-10-B-A x 1.0
High pressure ball valve BA799-10-B-A
High pressure ball valve Series BA799; Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals PEEK/ATEX; Medium temperature -20...+100°C;; G 1"; Nominal diameter 25mm; Pressure range 0...350bar; Length 113mm; Flange ISO5211 F05; Square 14mm; Application Isocyanate; Polyol
Add to Cart
Pneumatic actuator PAD085
PAD085 x 1.0
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
