BA775-10-S0-A0

Name: BA775-10-S0-A0
Brand: STASTO
SKU: BA775-10-S0-A0
Price: 999999.0 RON
Availability: InStock

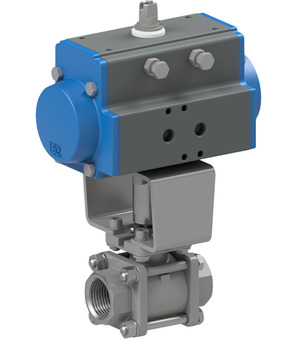

ball valve with pneumatic actuator; ATEX II 2 G/D; TA-Luft; female thread; housing, ball AISI 316; seals PTFE/FKM; compensation hole; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAS0855; NC; free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA77510S0A0

999.999,00 lei 999999.0 RON 999.999,00 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA775-10-L-A0 x 1.0

Ball valve made of stainless steel BA775-10-L-A0

ball valve made of stainless steel series BA775-A; ATEX II 2 G/D; TA-Luft; full bore; three-parts type; female thread; housing, ball AISI 316; seals PTFE/FKM; compensation hole; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0...40bar; length 92mm; free of oil and grease for oxygen

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3033 x 1.0
