BA774-10-2S0

Name: BA774-10-2S0
Brand: STASTO
SKU: BA774-10-2S0
Price: 999999.0 RON
Availability: InStock

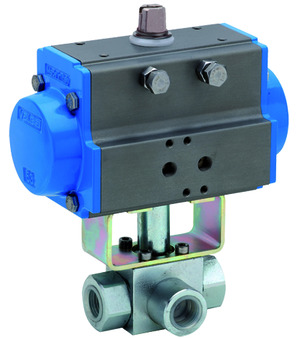

ball valve with pneumatic actuator; female thread 3-way-type; sealing on two sides; pressure inlet just in front; housing, ball stainless steel; seals POM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; pressure range 0...315bar; G 1"; nominal diameter 25mm; length 66mm; actuator PAS1405; ball T; flow path 02

Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA774102S0

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA774-10-B x 1.0

BA774-10-B

high pressure ball valve series BA774; 3-way-type; sealing on two sides; pressure inlet just in front; female thread; housing stainless steel; ball stainless steel; seals POM/EPDM; medium temperature -20...+100°C; for liquids; G 1/2"; nominal diameter 25mm; pressure range 0...315bar; length 66mm; ball T

Add to Cart

ATSV1005 x 1.0

ATSV1005

Mounting bridge; Material Zinc plated steel; Flange 1 F10; Flange 2 F05; Height 80mm

Add to Cart

A4/314/99 x 1.0

A4/314/99

Bolt; 1.4305; Diameter 40mm; Height of the bolt 79mm; Male square 27mm; Height of the male square 28mm; Female square 14mm; Height of the female square 18mm

Add to Cart

PAS1405 x 1.0

Pneumatic actuator PAS1405

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm

Add to Cart
