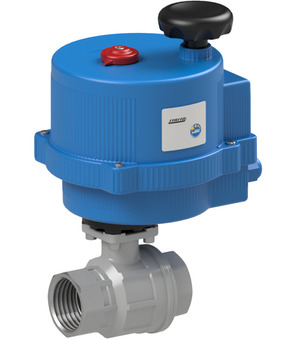

BA770-12-PL

BA770-12-PL

ball valve with electrical actuator; female thread; housing, ball AISI 316; seals PTFE-reinforced with carbographite/FKM; compensation hole; medium temperature -10...+160°C; RP 1/2"; DN 15mm; pressure range 0-140bar; length 66mm; operating time 8s; voltage 24VAC/DC; incl. accumulator for safety position NC; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP67

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA77012PL
https://www.stasto.ro/web/image/product.template/177174/image_1920?unique=f96ddcc

ball valve with electrical actuator; female thread; housing, ball AISI 316; seals PTFE-reinforced with carbographite/FKM; compensation hole; medium temperature -10...+160°C; RP 1/2"; DN 15mm; pressure range 0-140bar; length 66mm; operating time 8s; voltage 24VAC/DC; incl. accumulator for safety position NC; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP67

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA770-12-L
    BA770-12-L x 1.0
    Ball valve made of stainless steel BA770-12-L
    ball valve made of stainless steel series BA770; full bore; two-parts type; female thread; housing, ball AISI 316; seals PTFE-reinforced with carbographite/FKM; compensation hole; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0…140bar; length 66mm
    Add to Cart
    Electrical actuator VB030-L-AKKU
    VB030-L-AKKU x 1.0
    Electrical actuator VB030-L-AKKU
    Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Function NC
