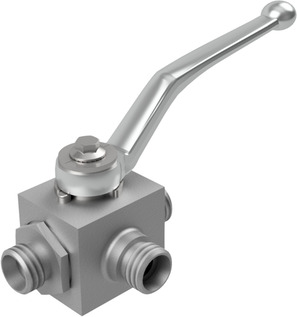

BA769-25S-L
high pressure ball valve series BA769, 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); housing zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 25S/M36x2; nominal diameter 20mm; pressure range 0...315bar; length 109mm; ball L
Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA76925SL
Country of origin: Germany
Short Itemnumber: BA76925SL
high pressure ball valve series BA769, 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); housing zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 25S/M36x2; nominal diameter 20mm; pressure range 0...315bar; length 109mm; ball L
| dimension | |
|---|---|
| Connection | 25S/M36x2, 25S/M36x2 |
| DN | 20 mm |
| Length | 109 mm |
| Designs | |
| Ball | L |
| pressure | |
| Pressure range | 0...315 bar |
No spare parts are available for this product.
