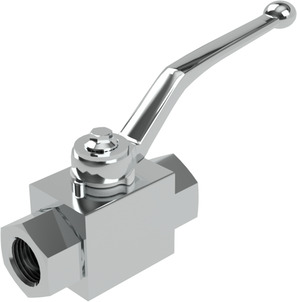

BA686-10-L-A03G
High pressure ball valve Series BA686-L-A03G; Female thread; Body, Ball 1.4571/1.4404; Seals PEEK(ATEX)/FKM; With erosion protection ring; For gases; Medium temperature -20...+200°C; G 1"; Nominal diameter 25mm; Pressure range 0...350bar; Length 113mm; Free of oil and grease; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Incl. ATEX-certificate
Country of origin: Germany
Weight: 2.2 Kg
Short Itemnumber: BA68610LA03G
high pressure ball valve series BA686-L-A03G; female thread; body, ball AISI 316Ti/AISI 316L; seals PEEK(ATEX)/FKM; with erosion protection ring; for gases; medium temperature -20...+200°C; G 1"; nominal diameter 25mm; pressure range 0...350bar; length 113mm; free of oil and grease; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; incl. ATEX-certificate
| Design | ATEX |
