BA670-34-S0

Name: BA670-34-S0
Brand: STASTO
SKU: BA670-34-S0
Price: 5532.0 RON
Availability: InStock

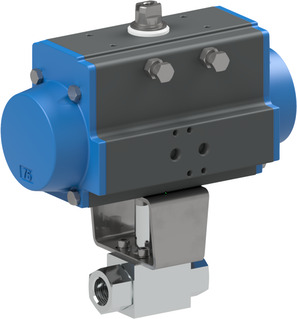

Ball valve with pneumatic actuator Series BA670-S; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals POM/NBR; With erosion protection ring; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+100°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...350bar; Length 95mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.67 Kg
Short Itemnumber: BA67034S0

ball valve with pneumatic actuator series BA670-S; female thread; body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals POM/NBR; with erosion protection ring; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+100°C; G 3/4"; nominal diameter 20mm; pressure range 0...350bar; length 95mm; actuator PAS1155

5.532,00 lei 5532.0 RON 5.532,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA670-34-B x 1.0

BA670-34-B

High pressure ball valve Series BA670; Drilled for mounting an actuator; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals POM/NBR; Medium temperature -30...+100°C; With erosion protection ring; G 3/4"; Nominal diameter 20mm; Pressure range 0...350bar; Length 95mm; Flange ISO5211 F05

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

04808007001 x 1.0

04808007001

Mounting bridge; Zinc plated steel; F05/F07-F05

Add to Cart

A4/338/99 x 1.0

A4/338/99

Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm

Add to Cart
