BA666-28L-D0

BA666-28L-D0

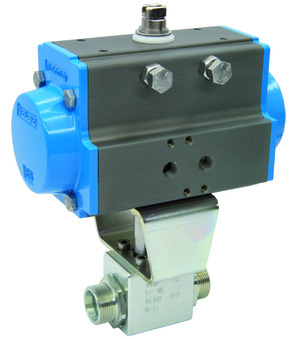

Ball valve with pneumatic actuator; Male thread According to DIN 2353; Body Zinc plated steel; Ball Stainless steel; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Connection 28L/M36x2; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Germany
Weight: 3.78 Kg
Short Itemnumber:BA66628LD0
https://www.stasto.ro/web/image/product.template/134467/image_1920?unique=6fca8dd

ball valve with pneumatic actuator; male thread according to DIN 2353; body zinc plated steel; ball stainless steel; seals PEEK/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; connection 28L/M36x2; nominal diameter 25mm; pressure range 0...350bar; length 120mm; actuator PAD075

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA666-28L-B x 1.0
    BA666-28L-B
    High pressure ball valve; Male thread According to DIN 2353; Body Zinc plated steel; Ball Stainless steel; Seals PEEK/FKM; Medium temperature -10…+160°C; Connection 28L/M36x2; Nominal diameter 25mm; Pressure range 0-350bar; Length 120mm; Flange F05 For mounting an actuator; Square 14mm
    Add to Cart
    Pneumatic actuator PAD075
    PAD075 x 1.0
    Pneumatic actuator PAD075
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
    Add to Cart
    A4/338/99 x 1.0
    A4/338/99
    Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
