BA575-25-S0-A

Name: BA575-25-S0-A
Brand: STASTO
SKU: BA575-25-S0-A
Price: 999999.0 RON
Availability: InStock

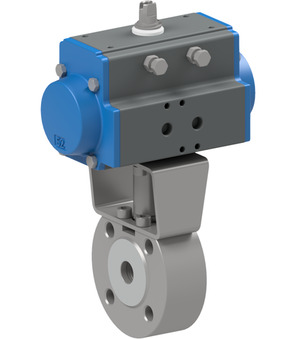

Flanged ball valve with pneumatic actuator; Flange PN40; Antistatic design; ATEX II 2 G/D c T3; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+150°C; Pressure range 0…40bar; Nominal diameter 25mm; Length 46mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.35 Kg
Short Itemnumber: BA57525S0A

flanged ball valve with pneumatic actuator; flange PN40; antistatic design; ATEX II 2 G/D c T3; body, ball AISI 316; seals PTFE-reinforced/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+150°C; pressure range 0…40bar; nominal diameter 25mm; length 46mm; actuator PAS0855

999.999,00 lei 999999.0 RON 999.999,00 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA575-25-L-A x 1.0

BA575-25-L-A

Flanged ball valve; Flange PN40; Antistatic design; ATEX II 2 G/D c T3; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Pressure range 0...40bar; Medium temperature -30...+150°C; Nominal diameter 25mm; Length 46mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3001 x 1.0
