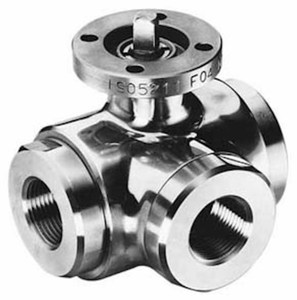

Ball valve made of stainless steel BA542-38-B

Ball valve made of stainless steel BA542-38-B

Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 3/8"; Nominal diameter 12mm; Pressure range 0...100bar; Length 72mm; Ball L; Flange ISO5211 F03; Square 9mm

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 0.93 Kg
Short Itemnumber: BA54238B
https://www.stasto.ro/web/image/product.template/130530/image_1920?unique=bcfc56d

ball valve made of stainless steel series BA541, BA542; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 3/8"; nominal diameter 12mm; pressure range 0...100bar; length 72mm; ball L; flange ISO5211 F03; square 9mm

1.506,00 lei 1506.0 RON 1.506,00 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Square
  • Flange ISO5211
  • Ball
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...100 bar
Female thread G 3/8"
DN 12 mm
Length 72 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...100 bar
Female thread G 3/8"
DN 12 mm
Length 72 mm
Ball L
Flange ISO5211 F03
Square 9 mm

BA542-38-B
