BA541-34-D0-ABS51-C001-22-C002-31-LV-1
BA541-34-D0

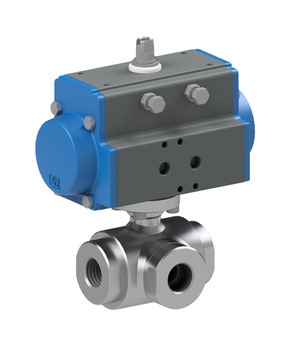

Ball valve with pneumatic actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 3/4"; Nominal diameter 20mm; Pressure range 0…100bar; Length 92mm; Actuator PAD063; Ball T
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
Country of origin: Italy
Weight: 2.57 Kg
Short Itemnumber: BA54134D0ABS51C00122C00231LV1
BA541-34-D0
ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; double acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 3/4"; nominal diameter 20mm; pressure range 0…100bar; length 92mm; actuator PAD063; ball T
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-LV-1
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 230VAC/DC
