BA541-12-30L

BA541-12-30L

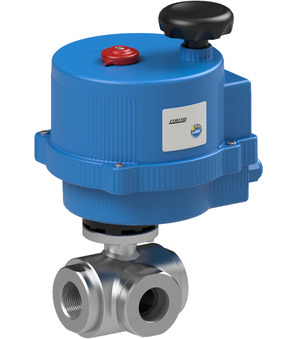

Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 1/2"; DN 15mm; Pressure range 0...40bar; Length 82mm; Operating time 10s; Voltage 24VAC/DC; Ball T; Flow path 03

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.563 Kg
Short Itemnumber: BA5411230L
https://www.stasto.ro/web/image/product.template/146460/image_1920?unique=d79ab69

ball valve with electrical actuator; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 1/2"; DN 15mm; pressure range 0...40bar; length 82mm; operating time 10s; voltage 24VAC/DC; ball T; flow path 03

3.406,30 lei 3406.3 RON 3.406,30 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...40bar
Brand STASTO

BA541-12-30L

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Ball valve made of stainless steel BA541-12-B
BA541-12-B x 1.0 Pcs
Ball valve made of stainless steel BA541-12-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 82mm; Ball T; Flange ISO5211 F03; Square 9mm
Electrical actuator VB015-L-24
VB015-L-24 x 1.0 Pcs
Electrical actuator VB015-L-24
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
