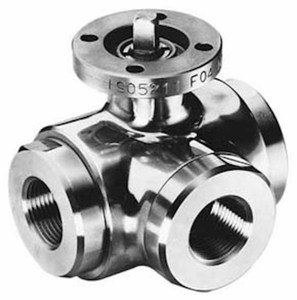

Ball valve made of stainless steel BA541-114-B-01
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 11/4"; Nominal diameter 32mm; Pressure range 0…64bar; Length 118mm; Ball T; Flange ISO5211 F05; Square 14mm
Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber: BA541114B01
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber: BA541114B01
ball valve made of stainless steel series BA541, BA542; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; ball T; flange ISO5211 F05; square 14mm
