BA522-40-D0

Name: BA522-40-D0
Brand: STASTO
SKU: BA522-40-D0
Price: 999999.0 RON
Availability: InStock

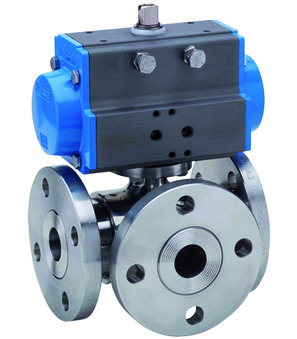

Flanged ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE Graphite reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Nominal diameter 40mm; Length 200mm; Pressure range 0-40bar; Flange PN40; Actuator PAD075; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.86 Kg
Short Itemnumber: BA52240D0

flanged ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE graphite reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+180°C; nominal diameter 40mm; length 200mm; pressure range 0-40bar; flange PN40; actuator PAD075; ball L

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA522-40-B x 1.0

BA522-40-B

Flanged ball valve; 3-way-type; Sealing on four ports; Body, Ball 1.4401; Seals PTFE Graphite reinforced/FKM; Medium temperature -20...+180°C; Nominal diameter 40mm; Length 200mm; Pressure range 0-40bar; Flange PN40; Ball L; For mounting an actuator F05/SW14

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart
