BA467-34-0L

BA467-34-0L

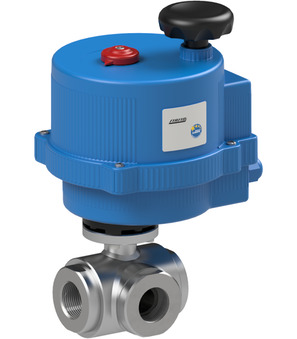

Ball valve with electrical actuator Series BA467; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FFKM; Full bore; Medium temperature 0...+100°C; G 3/4"; DN 20mm; Pressure range 0…100bar; Length 92mm; Operating time 8s; Voltage 24VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.06 Kg
Short Itemnumber: BA467340L
https://www.stasto.ro/web/image/product.template/205251/image_1920?unique=f96ddcc

ball valve with electrical actuator series BA467; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FFKM; full bore; medium temperature 0...+100°C; G 3/4"; DN 20mm; pressure range 0…100bar; length 92mm; operating time 8s; voltage 24VAC/DC; ball L

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Pressure range
  • Actuator
  • Operating time
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Pressure range 0...100 bar
DN 20 mm
Length 92 mm
All specifications (9)
Pressure range 0...40 bar
Pressure range 0...100 bar
DN 20 mm
Length 92 mm
Operating time 8 s
Voltage 24VAC/DC
Ball L
Female thread G 3/4"
Brand STASTO
Ball valve made of stainless steel BA467-34-B
BA467-34-B x 1.0 Pcs
Ball valve made of stainless steel BA467-34-B
Ball valve made of stainless steel Series BA467; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FFKM; Sealing on three ports; Medium temperature -20...+170°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...100bar; Length 92mm; Ball L; Flange ISO5211 F05; Square 14mm
Electrical actuator VB030-0E8-Q14
VB030-0E8-Q14 x 1.0 Pcs
Electrical actuator VB030-0E8-Q14
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 14mm; Voltage 24VAC/DC; Protection class IP67
