BA423-65-S0-A

BA423-65-S0-A

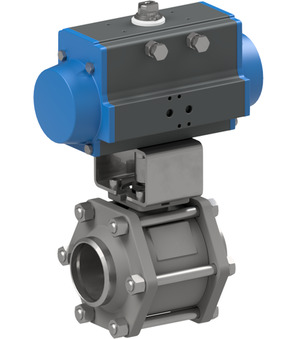

Ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Butt weld ends; Three-parts type; Body, Ball 1.4401; Seals PTFE/FKM; Integral seals; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0...16bar; Length 153mm; Actuator PAS1405

Intrastat No.: 84818081
Country of origin: Italy
Weight: 31.39 Kg
Short Itemnumber: BA42365S0A
https://www.stasto.ro/web/image/product.template/163220/image_1920?unique=f96ddcc

ball valve with pneumatic actuator; ATEX II 2 G/D c T3; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE/FKM; integral seals; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 65mm; pressure range 0...16bar; length 153mm; actuator PAS1405

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA423-65-L-A
BA423-65-L-A x 1.0
BA423-65-L-A
Ball valve made of stainless steel; ATEX II 2 G/D c T3; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE/FKM; Integral seals; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0...16bar; Length 153mm
Add to Cart
Pneumatic actuator PAS1405
PAS1405 x 1.0
Pneumatic actuator PAS1405
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm
