BA415-12-S0

BA415-12-S0

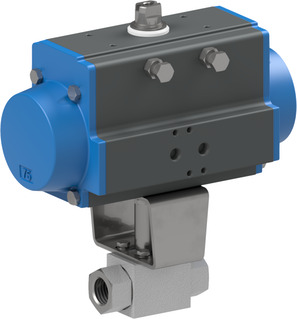

ball valve with pneumatic actuator series BA415; female thread; housing stainless steel; ball stainless steel; seals POM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm; actuator PAS1005; safety position NC

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA41512S0
https://www.stasto.ro/web/image/product.template/177596/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA415; female thread; housing stainless steel; ball stainless steel; seals POM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm; actuator PAS1005; safety position NC

4.550,70 lei 4550.7 RON 4.550,70 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/2"
DN 13 mm
Length 83 mm
pressure
Pressure range 0...500 bar
characteristics
Actuator PAS1005
BA415-12-L
BA415-12-L x 1.0
BA415-12-L
high pressure ball valve series BA415; female thread; housing, ball AISI 316Ti/AISI 316L; seals POM/EPDM; medium temperature -30...+100°C; for liquids; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm
Add to Cart
Pneumatic actuator PAS1005
PAS1005 x 1.0
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
Add to Cart
ATSV0703 x 1.0
ATSV0703
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F03; Height 60mm
Add to Cart
IV/00088/13 x 1.0
IV/00088/13
Bolt; 1.4305; Diameter 20mm; Height of the bolt 55mm; Male square 14mm; Height of the male square 18mm; Female square 9mm; Height of the female square 9mm
