BA400-15-S0-A

BA400-15-S0-A

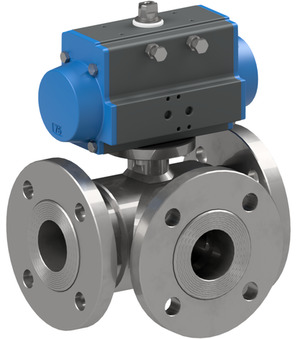

Flanged ball valve with pneumatic actuator; ATEX II 2G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+150°C; Nominal diameter 15mm; Length 130mm; Pressure range 0...40bar; Flange PN40; Actuator PAS0755; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.97 Kg
Short Itemnumber: BA40015S0A
https://www.stasto.ro/web/image/product.template/160563/image_1920?unique=35b1557

flanged ball valve with pneumatic actuator; ATEX II 2G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+150°C; nominal diameter 15mm; length 130mm; pressure range 0...40bar; flange PN40; actuator PAS0755; ball T

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA400-15-B-A
BA400-15-B-A x 1.0
BA400-15-B-A
Flanged ball valve; ATEX II 2G/D T4; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM; Sealing on three ports; Medium temperature -20...+150°C; Nominal diameter 15mm; Pressure range 0...40bar; Flange PN40; Length 130mm; Ball T; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAS0755
PAS0755 x 1.0
Pneumatic actuator PAS0755
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/457/04 x 1.0
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
Add to Cart
