BA397-50-S0-A

Name: BA397-50-S0-A
Brand: STASTO
SKU: BA397-50-S0-A
Price: 6050.1 RON
Availability: InStock

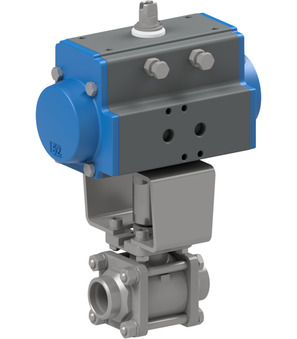

Ball valve with pneumatic actuator Series BA397-S-A; ATEX II 2 G/D c T3; Butt weld ends; Three-parts type; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.48 Kg
Short Itemnumber: BA39750S0A

ball valve with pneumatic actuator series BA397-S-A; ATEX II 2 G/D c T3; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0...25bar; length 136mm; actuator PAS1005

6.050,10 lei 6050.1 RON 6.050,10 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA397-50-L-A x 1.0

Ball valve made of stainless steel BA397-50-L-A

Ball valve made of stainless steel Series BA397-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

RI3034 x 1.0
