BA397-40-S0-A

BA397-40-S0-A

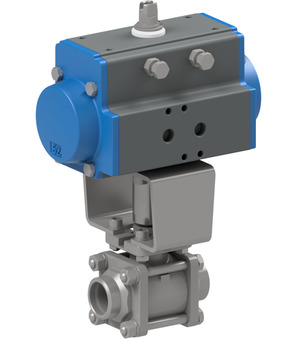

Ball valve with pneumatic actuator Series BA397-S-A; ATEX II 2 G/D c T3; Butt weld ends; Three-parts type; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.83 Kg
Short Itemnumber: BA39740S0A
https://www.stasto.ro/web/image/product.template/174310/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA397-S-A; ATEX II 2 G/D c T3; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAS0855

4.751,20 lei 4751.2 RON 4.751,20 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA397-40-L-A
BA397-40-L-A x 1.0
BA397-40-L-A
Ball valve made of stainless steel Series BA397-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
