BA397-100-S0-A

BA397-100-S0-A

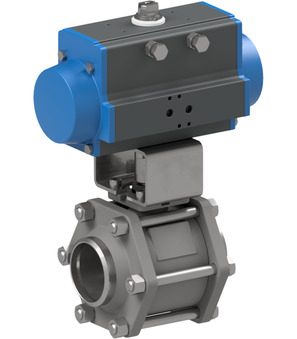

Ball valve with pneumatic actuator Series BA397-S-A; ATEX II 2 G/D c T3; Butt weld ends; Three-parts type; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0...16bar; Length 217mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 37.35 Kg
Short Itemnumber: BA397100S0A
https://www.stasto.ro/web/image/product.template/174312/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA397-S-A; ATEX II 2 G/D c T3; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; pressure range 0...16bar; length 217mm; actuator PAS1255

18.217,70 lei 18217.7 RON 18.217,70 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA397-100-L-A
BA397-100-L-A x 1.0
BA397-100-L-A
Ball valve made of stainless steel Series BA397-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0...16bar; Length 217mm
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
