BA384-25-S0-A-01

Name: BA384-25-S0-A-01
Brand: STASTO
SKU: BA384-25-S0-A-01
Price: 3614.9 RON
Availability: InStock

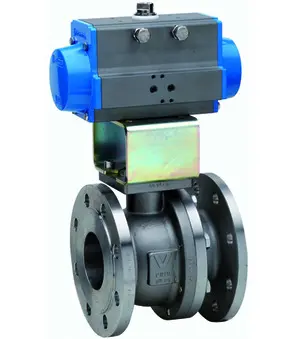

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Steel A352-LCB, Ball 1.4301; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 25mm; Actuator PAS0635-L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.02 Kg
Short Itemnumber: BA38425S0A01

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; body steel A352-LCB, ball AISI 304; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 25mm; pressure range 0-40bar; flange PN40; length 25mm; actuator PAS0635-L

3.614,90 lei 3614.9 RON 3.614,90 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA384-25-LLD-A x 1.0

BA384-25-LLD-A

Flanged ball valve Series BA384-LLD-A; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Steel A352-LCB, Ball 1.4301; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Medium temperature -40...+180°C; With locking device; Nominal diameter 25mm; Pressure range 0...40bar; Flange PN40; Length 125mm

Add to Cart

PAS0635-L x 1.0

Pneumatic actuator PAS0635-L

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3525 x 1.0
