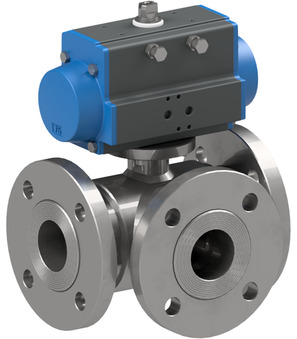

Flanged ball valve with pneumatic actuator BA313-25-S4-A03C

Flanged ball valve with pneumatic actuator BA313-25-S4-A03C

flanged ball valve with pneumatic actuator series BA313-S-A03C; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5...8bar; medium temperature -20...+170°C; nominal diameter 25mm; length 160mm; pressure range 0...50bar; flange ANSI300; actuator PAS1154; ball L; free of oil and grease for oxygen; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Short Itemnumber: BA31325S4A03C
https://www.stasto.ro/web/image/product.template/236600/image_1920?unique=2c328f5

flanged ball valve with pneumatic actuator series BA313-S-A03C; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5...8bar; medium temperature -20...+170°C; nominal diameter 25mm; length 160mm; pressure range 0...50bar; flange ANSI300; actuator PAS1154; ball L; free of oil and grease for oxygen; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

9.047,40 lei 9047.4 RON 9.047,40 lei

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 25 mm
Length 150 mm
Flange PN40
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 25 mm
Length 150 mm
Flange PN40
Ball L
Design ATEX
Brand STASTO

BA313-25-S4-A03C

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

2
German / Deutsch
ZIP

Data Sheets

2

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

2
English
ZIP

Data Sheets

2

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

2
Finnish / Suomi
ZIP

Data Sheets

2
French / Français
ZIP

Data Sheets

2
Croatian / hrvatski jezik
ZIP

Data Sheets

2
Hungarian / Magyar
ZIP

Data Sheets

2

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2
Dutch / Nederlands
ZIP

Data Sheets

2
Polish / Język polski
ZIP

Data Sheets

2

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

2
Slovenian / slovenščina
ZIP

Data Sheets

2

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

2
BA313-25-B-A03C x 1.0 Pcs
BA313-25-B-A03C
flanged ball valve series BA313-B-A03C; ATEX II 2 G/D T4; 3-way-type; sealing on four ports; full bore; body, ball AISI 316L; seals PTFE/FKM; medium temperature -20...+170°C; nominal diameter 25mm; length 160mm; flange ANSI300; ball L; for mounting an actuator; F05/14mm; free of oil and grease for oxygen; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Pneumatic actuator PAS1154
PAS1154 x 1.0 Pcs
Pneumatic actuator PAS1154
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 70,6Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
IV/00028/09 x 1.0 Pcs
IV/00028/09
Bolt; 1.4305; Diameter 30mm; Height of the bolt 59mm; Male square 17mm; Height of the male square 18mm; Female square 14mm; Height of the female square 14mm
