BA295-25-D0-A

Name: BA295-25-D0-A
Brand: STASTO
SKU: BA295-25-D0-A
Price: 999999.0 RON
Availability: InStock

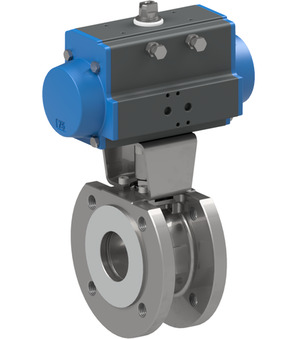

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/Carbographite; With o-ring From HNBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+50°C; Ambient temperature -40...+85°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 46mm; Ammonia water With 25% Water; Actuator PAD052-L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.66 Kg
Short Itemnumber: BA29525D0A

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/Carbographite; with o-ring from HNBR; double acting actuator; control pressure 5,5...8bar; medium temperature -30...+50°C; ambient temperature -40...+85°C; pressure range 0...16bar; nominal diameter 25mm; length 46mm; ammonia water with 25% water; actuator PAD052-L

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA295-25-L-A x 1.0

BA295-25-L-A

Flanged ball valve; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/Carbographite; With o-ring From HNBR; Pressure range 0...16bar; Medium temperature -30...+50°C; Nominal diameter 25mm; Length 46mm; Medium Ammonia water With 25% Water; ATEX II 2 G/D c T3

Add to Cart

PAD052-L x 1.0

Pneumatic actuator PAD052-L

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart

RI3001 x 1.0
