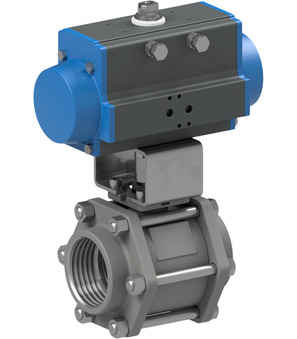

Ball valve with pneumatic actuator BA280-212-S0

Name: Ball valve with pneumatic actuator BA280-212-S0
Brand: STASTO
SKU: BA280-212-S0
Price: 7091.5 RON
Availability: InStock

ball valve with pneumatic actuator series BAC1; female thread; body, ball AISI 316; seals PTFE/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 21/2"; nominal diameter 65mm; pressure range 0-16bar; length 153mm; actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 21.14 Kg
Short Itemnumber: BA280212S0

7.091,50 lei 7091.5 RON 7.091,50 lei

Female thread
- RP 2 1/2"
DN
- 65 mm
Length
- 153 mm
Pressure range
- 0...16 bar
Actuator
- PAS1155

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 2 1/2"
DN	65 mm
Length	153 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1155

BA280-212-L x 1.0

Ball valve made of stainless steel BA280-212-L

ball valve made of stainless steel series 710000; full bore; three-parts type; female thread; body, ball AISI 316; seals PTFE/EPDM; medium temperature -20...+160°C; RP 21/2"; nominal diameter 65mm; pressure range 0-16bar; length 153mm

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

RI3010 x 1.0
