BA256-112-D0

BA256-112-D0

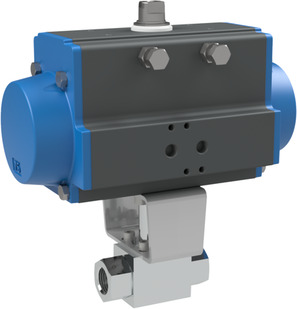

ball valve with pneumatic actuator; female thread; body, ball AISI 316Ti; seals PEEK/FKM; with erosion protection ring; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+200°C; for gases; G 11/2"; nominal diameter 40mm; pressure range 0…420bar; length 130mm; actuator PAD115

Intrastat No.: 84818081
Country of origin: Germany
Weight: 17.56 Kg
Short Itemnumber: BA256112D0
https://www.stasto.ro/web/image/product.template/232110/image_1920?unique=94b97ec

ball valve with pneumatic actuator; female thread; body, ball AISI 316Ti; seals PEEK/FKM; with erosion protection ring; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+200°C; for gases; G 11/2"; nominal diameter 40mm; pressure range 0…420bar; length 130mm; actuator PAD115

10.358,60 lei 10358.6 RON 10.358,60 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 3/4"
DN 20 mm
Length 95 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAD085
BA256-112-B x 1.0
BA256-112-B
high pressure ball valve; female thread; body stainless steel; ball stainless steel; seals PEEK/FKM; medium temperature -20...+200°C; G 11/2"; nominal diameter 40mm; pressure range 0...420bar; length 130mm; flange ISO5211 F05; square 17mm
Add to Cart
Pneumatic actuator PAD115
PAD115 x 1.0
Pneumatic actuator PAD115
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
Add to Cart
A4/428/03 x 1.0
A4/428/03
Bolt; 1.4305; Diameter 28mm; Height of the bolt 50mm; Male square 17mm; Height of the male square 19mm; Female square 17mm; Height of the female square 14mm
