BA236-14-D0

BA236-14-D0

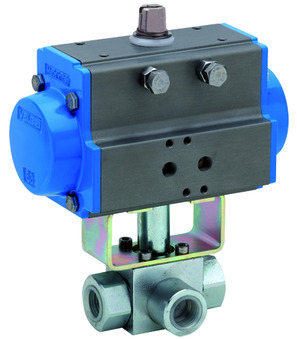

ball valve with pneumatic actuator; female thread 3-way-type; sealing on two sides; pressure inlet just in front; housing, ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; pressure range 0...500bar; G 1/4"; nominal diameter 6mm; length 69mm; actuator PAD063; ball L

Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA23614D0
https://www.stasto.ro/web/image/product.template/176431/image_1920?unique=baeb489

ball valve with pneumatic actuator; female thread 3-way-type; sealing on two sides; pressure inlet just in front; housing, ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; pressure range 0...500bar; G 1/4"; nominal diameter 6mm; length 69mm; actuator PAD063; ball L

3.110,00 lei 3110.0 RON 3.110,00 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...500bar
Brand STASTO
Pressure range 0...500bar
Brand STASTO
BA236-14-B x 1.0 Pcs
High pressure ball valve BA236-14-B
high pressure ball valve series BA236, BA646; 3-way-type; sealing on two sides; pressure inlet just in front; female thread; housing zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; G 1/4"; nominal diameter 6mm; pressure range 0...500bar; length 69mm; ball L; square 9mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
MBNS0503-30 x 1.0 Pcs
MBNS0503-30
Mounting bridge; Zinc plated steel; Flange 1 F05; Flange 2 F03 30°; Height 60mm
A4/223/96 x 1.0 Pcs
A4/223/96
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
