BA233-30S-D0-01

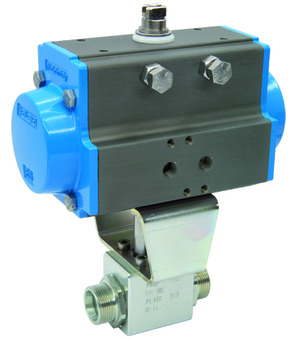

Ball valve with pneumatic actuator; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; Connection 30S/M42x2; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.42 Kg
Short Itemnumber:BA23330SD001
https://www.stasto.ro/web/image/product.template/142112/image_1920?unique=6fca8dd

ball valve with pneumatic actuator; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; connection 30S/M42x2; nominal diameter 25mm; pressure range 0...350bar; length 120mm; actuator PAD085

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    In your language
    ZIP
    CAD / 3D
    1
    CADSTEP_BA23330SD001.stp
    Download
    BA233-30S-B-01 x 1.0
    BA233-30S-B-01
    High pressure ball valve; Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Medium temperature -20...+100°C; Connection 30S/M42x2; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Flange ISO5211 F05; Square 14mm
    Add to Cart
    Pneumatic actuator PAD085
    PAD085 x 1.0
    Pneumatic actuator PAD085
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
    Add to Cart
    A4/338/99 x 1.0
    A4/338/99
    Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
