BA233-18L-D0-ABS51-C001-03-C002-31-6
BA233-18L-D0

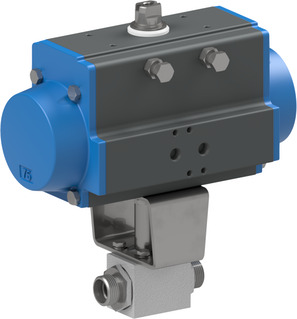

Ball valve with pneumatic actuator Series BA233; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; Connection 18L/M26x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 82mm; Actuator PAD075
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
Country of origin: Italy
Weight: 3.98 Kg
Short Itemnumber: BA23318LD0ABS51C00103C002316
BA233-18L-D0
ball valve with pneumatic actuator series BA233; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; connection 18L/M26x1,5; nominal diameter 13mm; pressure range 0...500bar; length 82mm; actuator PAD075
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
