BA233-112-D0-ABS51-C001-22-C002-31-LV-1
BA233-112-D0

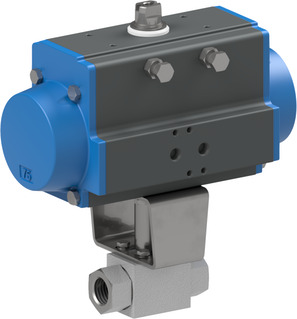

Ball valve with pneumatic actuator Series BA233; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 11/2"; Nominal diameter 25mm; Pressure range 0...350bar; Length 130mm; Actuator PAD085
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
Country of origin: Italy
Weight: 7.23 Kg
Short Itemnumber: BA233112D0ABS51C00122C00231LV1
BA233-112-D0
ball valve with pneumatic actuator series BA233; female thread; body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 11/2"; nominal diameter 25mm; pressure range 0...350bar; length 130mm; actuator PAD085
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-LV-1
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 230VAC/DC
