BA196-40-S0

Name: BA196-40-S0
Brand: STASTO
SKU: BA196-40-S0
Price: 6898.8 RON
Availability: InStock

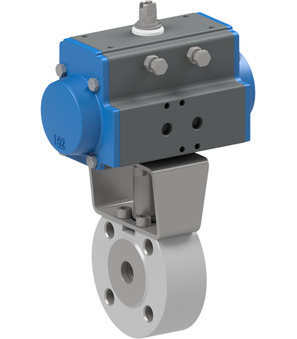

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 19.08 Kg
Short Itemnumber: BA19640S0

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; without dead space; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 40mm; length 63,5mm; actuator PAS1255

6.898,80 lei 6898.8 RON 6.898,80 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

720002-40 x 1.0

720002-40

Flanged ball valve DN40, PN16 body and ball 1.4401, seal PTFE full bore cavity-free

Add to Cart

PAS1255 x 1.0

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

RI3009 x 1.0
