BA185-40-0L-01

BA185-40-0L-01

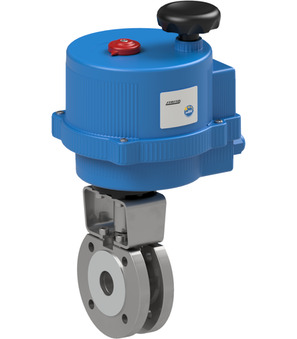

Flanged ball valve with electrical actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 40mm; Pressure range 0-16bar; Length 63,5mm; Operating time 9s; Voltage 24VAC/DC; Free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.15 Kg
Short Itemnumber: BA185400L01
https://www.stasto.ro/web/image/product.template/131052/image_1920?unique=6ecfc1b

flanged ball valve with electrical actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; DN 40mm; pressure range 0-16bar; length 63,5mm; operating time 9s; voltage 24VAC/DC; free of oil and grease for oxygen

6.146,50 lei 6146.5 RON 6.146,50 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-16bar
Brand STASTO
Pressure range 0-16bar
Brand STASTO
720054-40
720054-40 x 1.0 Pcs
720054-40
Flanged ball valve; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Free of oil and grease for oxygen
Electrical actuator VB060-L
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
RI3002 x 1.0 Pcs
RI3002
Mounting bracket, F07/F05-F05, Bolt 14-10
