BA161-18L-D0

BA161-18L-D0

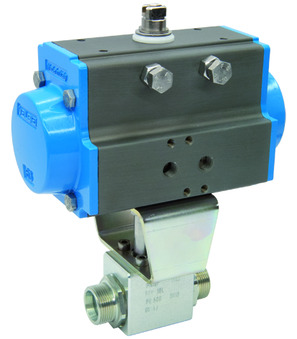

Ball valve with pneumatic actuator; Male thread According to DIN 2353; Body Zinc plated steel; Ball Steel; Seals POM/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 18L/M26x1,5; Nominal diameter 15mm; Pressure range 0-500bar; Length 83mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.68 Kg
Short Itemnumber: BA16118LD0
https://www.stasto.ro/web/image/product.template/126034/image_1920?unique=f96ddcc

ball valve with pneumatic actuator; male thread according to DIN 2353; body zinc plated steel; ball steel; seals POM/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; connection 18L/M26x1,5; nominal diameter 15mm; pressure range 0-500bar; length 83mm; actuator PAD063

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 18L/M26x1,5
Pressure range 0-500bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Connection 18L/M26x1,5
Pressure range 0-500bar
Brand STASTO

BA161-18L-D0

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BA161-18L-B x 1.0 Pcs
BA161-18L-B
High pressure ball valve; Male thread According to DIN 2353; Body Zinc plated steel; Ball Steel; Seals POM/FKM; Medium temperature -10...+100°C; Connection 18L/M26x1,5; Nominal diameter 16mm; Pressure range 0-500bar; Length 83mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
04805007001 x 1.0 Pcs
04805007001
Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
A4/459/04 x 1.0 Pcs
A4/459/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 48mm; Male square 14mm; Height of the male square 15mm; Female square 12mm; Height of the female square 12mm
