BA152-12-D0-AB

BA152-12-D0-AB

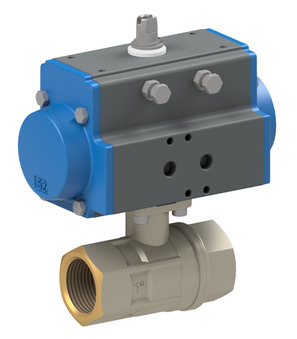

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-40bar; Length 67mm; Actuator PAD052; ATEX zone 1 and 21

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.423 Kg
Short Itemnumber: BA15212D0AB
https://www.stasto.ro/web/image/product.template/153075/image_1920?unique=3970b0b

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-40bar; length 67mm; actuator PAD052; ATEX zone 1 and 21

1.598,80 lei 1598.8 RON 1.598,80 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
2530-1/2"-A x 1.0
2530-1/2"-A
Ball valve made of brass; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; Without hand lever; Connection G 1/2"; Nominal diameter 15mm; Pressure range 0-40bar; Length 67mm; ATEX
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
