BA152-10-S0-A

Price.

319,76 €
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA152-10-S0-A
BA152-10-S0-A
CVT-10-NC-345
CVT-10-NC-345
341,47 €
341,47 €
BA152-10-T0-A
BA152-10-T0-A
315,96 €
315,96 €

BA152-10-S0-A

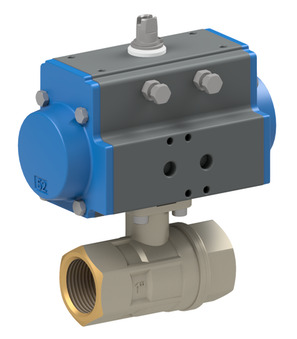

Ball valve with pneumatic actuator; Body Brass; Ball Stainless steel AISI 304; Seals PTFE/EPDM/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Actuator PAS0525; ATEX-design

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.023 Kg
Short Itemnumber:BA15210S0A
https://www.stasto.ro/web/image/product.template/130509/image_1920?unique=5958ab8

ball valve with pneumatic actuator; body brass; ball stainless steel AISI 304; seals PTFE/EPDM/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 90mm; actuator PAS0525; ATEX-design

319,76 € 319.75989617131734 EUR 319,76 €

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
2530-1"-A x 1.0
2530-1"-A
Ball valve made of brass; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; Without hand lever; Connection G 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; ATEX
Add to Cart
Pneumatic actuator PAS0525
PAS0525 x 1.0
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
Add to Cart
