BA144-32-S0-3C

BA144-32-S0-3C

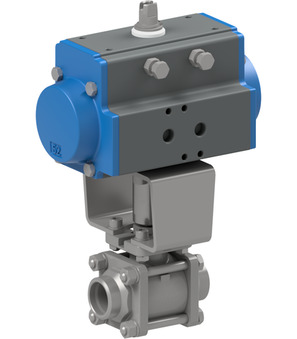

ball valve with pneumatic actuator series BA144-S-3C; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-reinforced/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAS0635; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.01 Kg
Short Itemnumber: BA14432S03C
https://www.stasto.ro/web/image/product.template/229221/image_1920?unique=9fa7d43

ball valve with pneumatic actuator series BA144-S-3C; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-reinforced/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAS0635; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

3.092,10 lei 3092.1 RON 3.092,10 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25bar
Brand STASTO
Pressure range 0...25bar
Brand STASTO
BA144-32-L-3C
BA144-32-L-3C x 1.0 Pcs
BA144-32-L-3C
Ball valve made of stainless steel Series BA144-L-3C; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Medium temperature -30...+160°C; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3033 x 1.0 Pcs
RI3033
Mounting bracket; F05/F03-F04; Bolt 14-8
