BA140-34-S0-01

BA140-34-S0-01

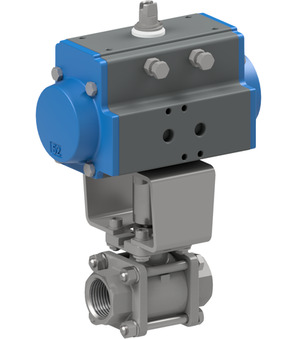

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.46 Kg
Short Itemnumber: BA14034S001
https://www.stasto.ro/web/image/product.template/217612/image_1920?unique=a753443

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; without dead space; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS0855

3.369,60 lei 3369.6 RON 3.369,60 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
710009-3/4" x 1.0 Pcs
710009-3/4"
Stainless steel ball valve; Full passage; Three-part; Internal thread; Housing, Ball 1.4401; Seals PTFE/FKM; Seals with low dead space; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Installation length 76mm
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
RI3783 x 1.0 Pcs
RI3783
Mounting bracket; F05/F03-F04,14-7
