BA126-100-D0

Name: BA126-100-D0
Brand: STASTO
SKU: BA126-100-D0
Price: 999999.0 RON
Availability: InStock

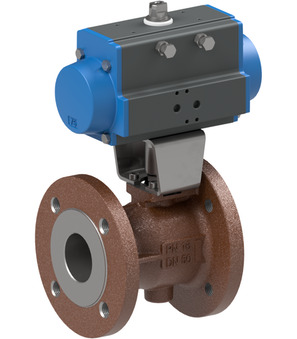

Flanged ball valve with pneumatic actuator; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 190mm; Length EN558-1R14; Actuator PAD100

Intrastat No.: 84818081
Country of origin: Italy
Weight: 30.32 Kg
Short Itemnumber: BA126100D0

flanged ball valve with pneumatic actuator; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...16bar; nominal diameter 100mm; length 190mm; length EN558-1R14; actuator PAD100

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA126-100-L x 1.0

Flanged ball valve BA126-100-L

Flanged ball valve Series BA126-L; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 100mm; Length 190mm; Length EN558-1 R14

Add to Cart

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

Add to Cart

RI3004 x 1.0
