BA119-10-D0

Name: BA119-10-D0
Brand: STASTO
SKU: BA119-10-D0
Price: 3984.1 RON
Availability: InStock

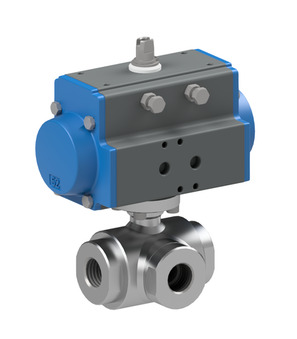

Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE/EPDM-Perox; Double acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -45...+140°C; Pressure range 0…40bar; G 1"; Nominal diameter 25mm; Length 102mm; Actuator PAD063; Ball T;

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.28 Kg
Short Itemnumber: BA11910D0

ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE/EPDM-Perox; double acting actuator; full bore; control pressure 5,5...8bar; medium temperature -45...+140°C; pressure range 0…40bar; G 1"; nominal diameter 25mm; length 102mm; actuator PAD063; ball T;

3.984,10 lei 3984.1 RON 3.984,10 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA119-10-B x 1.0

Ball valve made of stainless steel BA119-10-B

Ball valve made of stainless steel Series BA119, BA235; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/EPDM-Special; Sealing on three ports; Medium temperature -45...+150°C; G 1"; Nominal diameter 25mm; Pressure range 0…64bar; Length 102mm; Ball T; Flange ISO5211 F05; Square 14mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart
