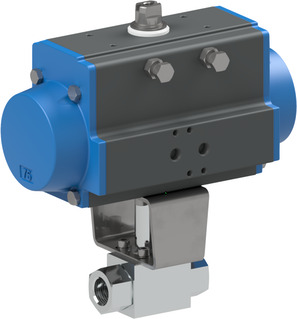

BA102-12-S0-01

BA102-12-S0-01

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4571/1.4404; Seals POM/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 1/2"; Nominal diameter 13mm; Length 83mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.82 Kg
Short Itemnumber: BA10212S001
https://www.stasto.ro/web/image/product.template/152977/image_1920?unique=0e064cb

ball valve with pneumatic actuator; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 1/2"; nominal diameter 13mm; length 83mm; actuator PAS0635

2.336,80 lei 2336.8 RON 2.336,80 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Brand STASTO
Brand STASTO
BA102-12-B x 1.0 Pcs
High pressure ball valve BA102-12-B
High pressure ball valve Series BA102; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/FKM; For liquids; Medium temperature -20...+100°C; Square 9mm; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Flange ISO5211 F03
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
04806007007 x 1.0 Pcs
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
A4/223/96 x 1.0 Pcs
A4/223/96
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
